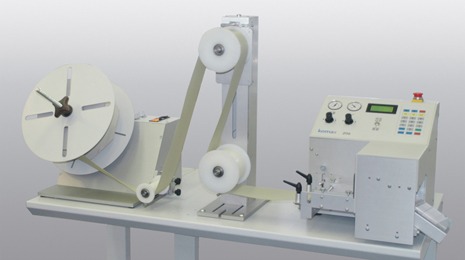

With the Komax ads 115 wire feed system, you can feed wire gently, continuously and rapidly at high processing speeds.
The Komax ads 115 is a wire feed system that can be used very flexibly with Komax automatic cutting and stripping machines.You can easily change the position of the linear storage unit to put it in the ideal spot for every application. Reels up to 400mm diameter, loose rings and ribbon cable can be used on the dereeling stand.The quick clamping system allows the various reels to be changed quickly.The large linear storage unit controls the dereeling speed continuously, adapting it to the amount of wire needed.The direction of rotation can be adjusted with a tumbler switch, allowing wire to be either dereeled or wound up.
Komax offer to you an optimal support by individual Service offers.
| Reels: | Diameter max. 400mm (narrow-ribbon reels up to 600mm) Width max. 250mm Core diameter 14 – 95mm Wire cross section max. 4mm<sup2 |
| Loose rings: | Inner diameter min. 30mm Outside diameter max. 300mm Width max. 82mm Weight holding capacity max. 20kg |
| Electrical connections | 115/230V, 50/60Hz |
| Weight | 24.5kg |
| Dimensions (WxHxD): | Basic device 400 x 350 x 330mm Storage unit 140 x 552 x 260mm |
