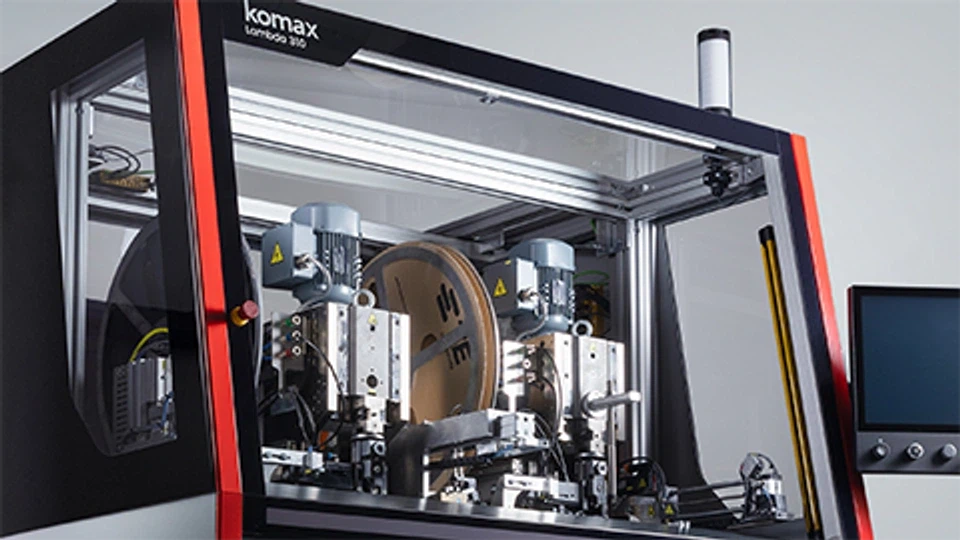

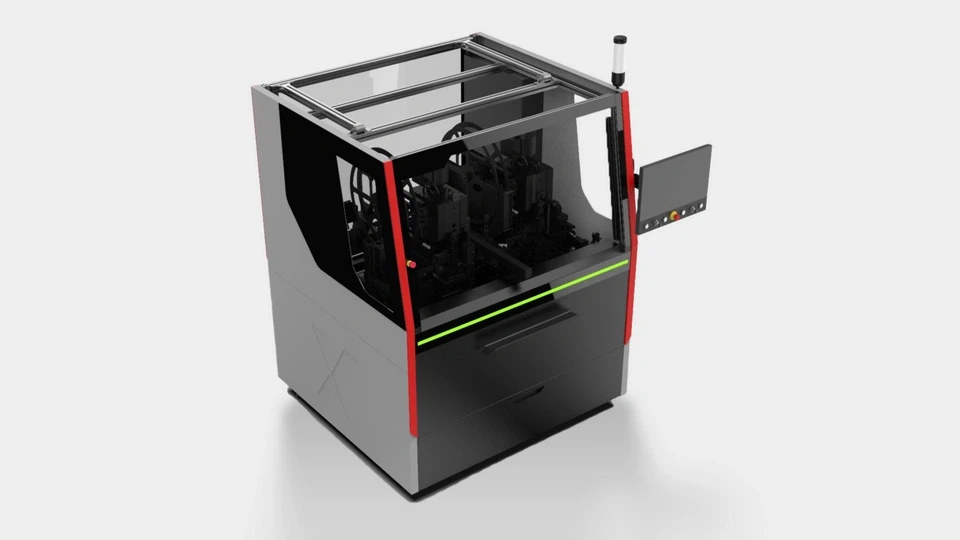

The Lambda 3 platform is the ideal entry-level solution for high-quality, semiautomatic cable assembly where space is limited.
Finance available on this product subject to credit approval
Lambda 3 Series
Investment security
The minimal investment required for the semiautomatic system, as well as the customized and modifiable module configuration, reduce the investment risk.
Minimal space requirements with the highest quality
Despite requiring only a small amount of space (1.5 x 1.5 m), it achieves a high, reproducible assembly quality with low production costs per cable.
Standardized software framework
Uniform maintenance and operation across the entire Lambda portfolio reduces training and service requirements.
Individual module configuration
The system’s processing modules can be customized for all common connector systems.
| Cable length (uncoiled) | 1300mm |
| Wire length coiled max. | 15000mm |
| Wire outer diameter max. | 6mm |
| Shortest wire length for one-sided processing | 90mm |
| Electrical connection | 3 × 230/400 V, 50/60 Hz |
| Current | 20A, typeD |
| Compressed-air connection | 7-10 bar |
| Weight | ca. 1.000 kg |
| Width | 1500mm |
| Length | 1500mm |
| Noise level | ≤ 78 dBA |
| Ambient temperature min. | 15°C |
| Ambient temperature max. | 40°C |
| Cycle time | >10 sec |
| Connector systems | Coax, mini Coax, Automotive Ethernet UTP, and STP |
| Maximum yearly output | 900000 |
| Transfer system | One-Shuttle belt drive |
| Processing outside the specifications | Processing outside the specifications upon request. |
