Mecal P107C Bench Press
Larger than the TT model, this 2 tonne press offers more space for pneumatic feed applicators and helps with loading rear feed tools.
Finance available on this product subject to credit approval
Mecal P107C Bench Press
The Zeta 620 offers space for two process modules.
The optional inkjet markers are integrated into the chassis by means of a drawer.

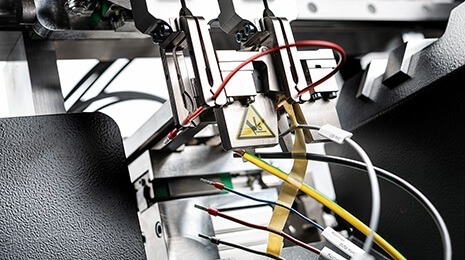

The bundler sorts the batches and fixes the matching wires with adhesive tape in one process step.
Zeta 620 Wire samples
Larger than the TT model, this 2 tonne press offers more space for pneumatic feed applicators and helps with loading rear feed tools.
Product Info
- Available for bench or automatic use
- Cast frame
- Standard 40mm stroke – variable stroke attachment available (20-40mm)
- Industry standard shut height 135.8mm
- Accepts all standard Applicators and Miniapplicators
- Adaptor kits for alternative applicator styles available
- Folding guard and footswitch supplied with bench version
- Crimp Force Analyser available for this press
Processing Applications and Functions
Crimping
Technical data Mecal P107C Bench Press
| Power | Single phase – 0.55kW (0.75HP), Three phase 0.75kW (1.0HP) |
| Force | 2000kg |
| Stroke | 40mm |
| Crimp Height | 135.8 mm |
| Weight | 41kg |
| Dimensions (WxHxD) | 280 x 860 x 310 |
| Voltage Supply | Single phase – 230V, Three phase – 380-415V |
